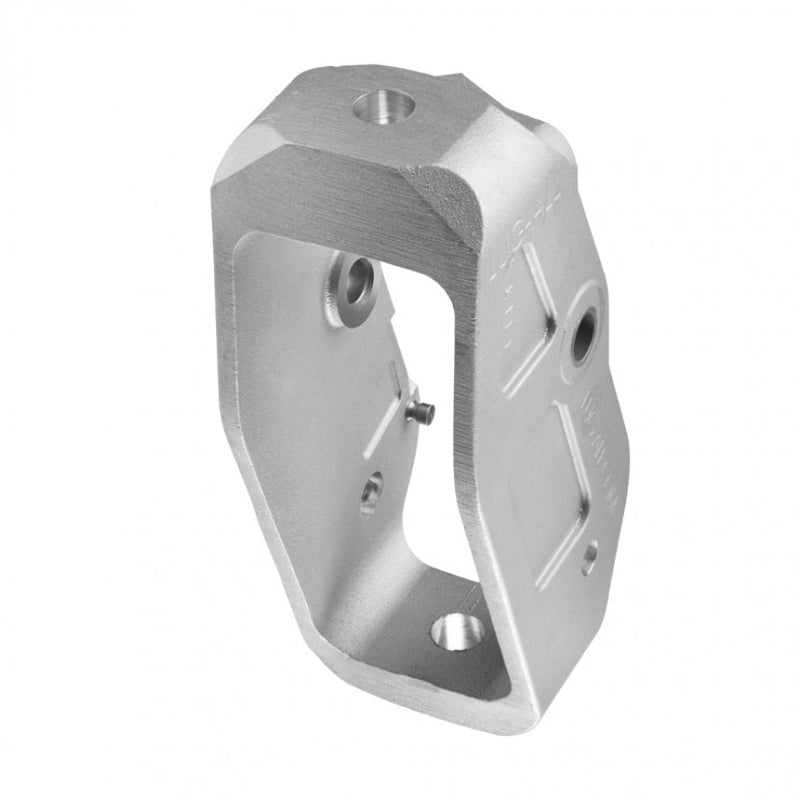

Main Frame “ SKU: 603 The Structural Foundation of Your Lug-All Lightweight Web Strap Hoist Every ratchet winch hoist is only as strong and reliable as the frame that holds it together. The Main Frame (SKU: 603) is the genuine OEM replacement main frame casting engineered for the Lug-All Lightweight series web strap hoists ” the compact, industrial-grade come-alongs designed for maximum portability without sacrificing performance. This main frame is compatible with Lug-All hoist models 25-i, 500-A, and 500-i. These three models span two capacity classes within the Lug-All Lightweight product family: Lug-All

The 25-i is an industrial-grade 1½-ton web strap hoist with an eye bolt main frame, delivering 1,500 lbs single-line capacity and 3,000 lbs double-line capacity ” ideal for fast double-line-pull setups, piggybacking, and storage. Lug-All The 500-A is a ¼-ton web strap winch hoist with 16 feet of web strap and a 500-lb single-line capacity ” compact enough to fit in the seat compartment of an off-road vehicle such as a snowmobile or 4x4. Lug-All The 500-i mirrors the 500-A's ¼-ton, 500-lb capacity and 16-foot strap length, but adds eyebolts to avoid hook-to-hook connections for added rigging versatility. Lug-All

The main frame is the proprietary cast-aluminum housing that anchors every working component of the hoist ” the drum, pawl system, U-frame, shafts, and hooks all mount to or within it. Lug-All's cast-aluminum structure, robust pawl assemblies, and reliable hardware are what make these hoists a trusted choice in demanding industrial, construction, and utility settings. A cracked, bent, or damaged main frame doesn't just affect performance ” it compromises the structural integrity of every component it supports, and the hoist must be taken out of service immediately. Lug-All The compact configuration of the Lug-All Lightweight series makes these hoists easy to transport and store, fitting neatly into utility cases and seat compartments for off-road recovery, vehicle extraction, debris removal, and a wide range of precision field tasks. Rebuilding with an OEM main frame instead of replacing the entire unit is the most cost-effective way to extend the service life of a well-maintained Lug-All Lightweight hoist. Amazon Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit, and having a thorough selection of parts easily matched to your hoist model simplifies maintenance and minimizes downtime. Lug-All

Product Specifications SpecificationDetailSKU / Part Number603Part NameMain FrameCompatible ModelsLug-All #25-i, #500-A, #500-iFrame MaterialCast Aluminum AlloyModel 500-A / 500-i Capacity500 lbs (single line) / 1,000 lbs (double line)Model 25-i Capacity1,500 lbs (single line) / 3,000 lbs (double line)Hoist SeriesLug-All Lightweight / Web StrapComponent CategoryMain Frame / StructuralCountry of OriginUSA

Order the Right Part for Your Model The SKU 603 Main Frame fits models 25-i, 500-A, and 500-i only. It is not interchangeable with main frames for other Lug-All cable or standard web strap hoist families. Confirm your model number ” stamped into the ratchet side of the drum ” before ordering. Order SKU 603 today and restore your Lug-All Lightweight hoist to full factory specification.
