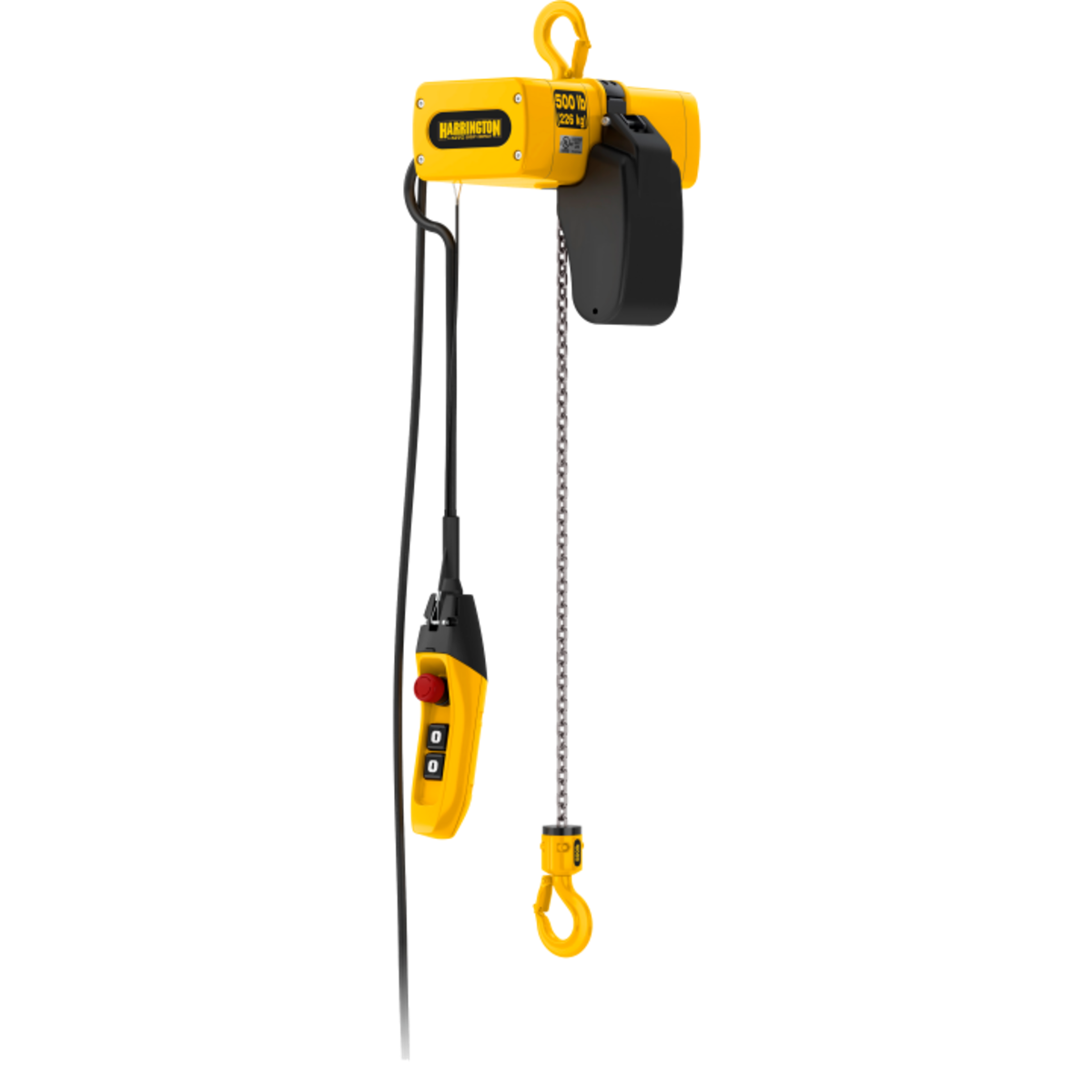

Harrington EM Series Mini Hoist with Hook Suspension - 500 lbs - 10 ft Lift

Write a Review
$3,530.79
$2,626.03
(You save $904.76 )
SKU: EM003L-10
Condition: New
Availability: Subject to Availability
Weight: 30.90 LBS
Shipping: Calculated at Checkout
Part Number: EM003L-10
Color: Yellow
Hoist Lift: 10 ft
product: Electric Hoists, Hoist Mount:
Includes: Non-Programmable
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 5 yr
Body Width: 11 1/2 in
Body Depth: 7 29/32 in
For Minimum Beam Height: Not Applicable
Body Length: 11 1/2 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 8 3/16 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 13/32 in
Minimum Retracted Length: 11 19/32 in
Phase: 3
Number of Speeds: 1
Features: Upper Limit Switch, Non-Drip, Grease Packed Gear Box, Solid State Relay Board, Unique Chain Guide
Lifting Hook Material: Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Electromagnetic
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant
Fixed Lift Speed: 16 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Mount Type: Hook Mounted-No Trolley
Starts and Stops per Hour: 300
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 3/8 hp
Headroom: 11 19/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP65
Lifting Hook Type: Hook with Safety Latch
Maximum Lifting Capacity: 500 lb
Current at Minimum Voltage: 1.4 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 1.4 A
Number of Load Chains: 1
Body Material: Die-Cast Aluminum
Programmable: Non-Programmable
Control: Single Speed
Capacity: 0 - 999 lbs
Lift: 10 ft
Voltage: 208/230-460-3-60
Adding to cart… The item has been added
Harrington EM Series Mini Hoist with Hook Suspension - 500 lbs - 10 ft Lift

Harrington EM Series Mini Hoist with Hook Suspension - 500 lbs - 10 ft Lift

$3,530.79
$2,626.03
(You save $904.76 )

The EM003L-10 HARRINGTON EM Electric Hoist is not just a tool; it is a revolution in material handling technology. Designed for superior performance and reliability, this state-of-the-art three-phase mini electric chain hoist redefines what you can expect from lifting solutions, making it a pivotal asset for any industrial environment.

With a weight capacity of 500 lbs and an impressive 10' lift ability, the EM003L-10 excels across various applications, from manufacturing and construction sites to warehouses and heavy-duty industrial operations. Its advanced control system, powered by Solid State Relay (SSR) technology and a microcontroller (MCU), guarantees unparalleled precision and smooth operation. Whether you require lifting or lowering heavy loads, this hoist delivers with exquisite accuracy, setting a new standard for safety and efficiency.

  • 10' lift capacity ideal for diverse lifting tasks.
  • 500 lbs load capacity, suitable for heavy lifting operations.
  • Advanced SSR and MCU technology for enhanced control.
  • Comprehensive safety features, including overload protection and limit switches.
  • Durable construction designed to withstand rigorous applications.
  • Compact and lightweight design for easy installation and portability.
  • Low maintenance requirements ensuring longevity and reliability.
  • Higher operational efficiency due to fast response times.

When it comes to safety, the EM003L-10 sets a benchmark that others merely aspire to reach. With built-in overload protection, operators can work with the peace of mind that their safety is safeguarded. The hoist also features upper and lower limit switches, guaranteeing that lifting operations are conducted in a controlled, secure manner. This is particularly essential in demanding environments where safety is of utmost importance.

Constructed from high-quality materials, the EM003L-10 is engineered for durability, ensuring that it can endure the most challenging environments. Say goodbye to the inconveniences of frequent repairs and downtimes; with the EM003L-10, you are investing in a reliable partner for your lifting needs that will stand the test of time.

Choosing the EM003L-10 HARRINGTON Electric Hoist means opting for superior performance and uncompromised safety. Elevate your productivity and ensure the safe transport of heavy loads with confidence. Don’t settle for anything less than this benchmark of excellence in hoisting technology. Equip your workplace with the EM003L-10 and experience the difference that a high-quality electric hoist brings to your operations.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
