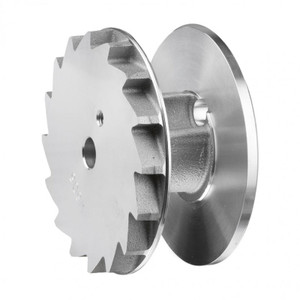

Drum “ SKU: 606 The Core Winding Component That Drives Every Lift, Pull, and Lower In a ratchet winch hoist, the drum is where mechanical energy meets load control. It stores the web strap, engages the ratchet mechanism, and transfers every stroke of the handle into precise, controlled movement of your load. The Drum (SKU: 606) is the genuine OEM replacement drum designed for five of Lug-All's most widely used small frame web strap hoists. This drum is compatible with Lug-All hoist models 25-A, 25-B, 25-i, 2-A, and 2-B ” spanning a 1-ton to 1½-ton capacity range across standard, hot stick, and eye bolt main frame configurations. Lug-All Here's what each compatible model delivers:

25-A ” 1½-ton industrial-grade web strap hoist: 1,500 lbs single line / 3,000 lbs double line, 8 ft strap. Lug-All 25-B ” Same 1½-ton capacity as the 25-A, with hot-stick rings for electrical lineman work. Lug-All 25-i ” 1½-ton hoist with eye bolt main frame, ideal for fast double-line-pull setups, piggybacking, and storage. Lug-All 2-A / 2-B ” 1-ton web strap hoists: 1,000 lbs single line / 2,000 lbs double line, 10 ft strap; the 2-B adds hot-stick rings. Lug-All

The drum serves two indispensable functions simultaneously. First, it winds and stores the web strap, paying out and retracting the strap with every handle stroke. The double flanged drum design prevents the web strap from coming into contact with the ratchet teeth ” a critical protection that prevents strap abrasion and premature wear, preserving both the strap and the drum's own ratchet profile. Second, the ratchet teeth machined into the drum face are the engagement surface for both the main frame pawl and the U-frame pawl ” the entire load-holding and drive mechanism of the hoist depends directly on the drum's tooth integrity. Certex For models manufactured before 2005, the model number and capacities are imprinted on the ratchet-teeth side of the drum itself ” illustrating just how central the drum is to the hoist's identity and function. A worn, cracked, or tooth-damaged drum cannot safely hold a load and must be replaced before the hoist is returned to service. Lug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU / Part Number606Part NameDrumCompatible ModelsLug-All #25-A, #25-B, #25-i, #2-A, #2-BHoist TypeSmall Frame Web Strap Ratchet Winch HoistModel 2-A / 2-B Capacity1,000 lbs (single) / 2,000 lbs (double)Model 25-A, 25-B, 25-i Capacity1,500 lbs (single) / 3,000 lbs (double)Drum FeatureDouble Flanged DesignComponent CategoryDrum / Ratchet DriveCountry of OriginUSA

Confirm Your Model Before Ordering The SKU 606 Drum is sized specifically for models 25-A, 25-B, 25-i, 2-A, and 2-B. It is not interchangeable with drums from medium or large frame Lug-All hoist families. Confirm your model number before ordering ” it is found on the ratchet side of the drum or on the hoist's identification label. Order SKU 606 today and restore your Lug-All hoist's core drive mechanism to full factory performance.
