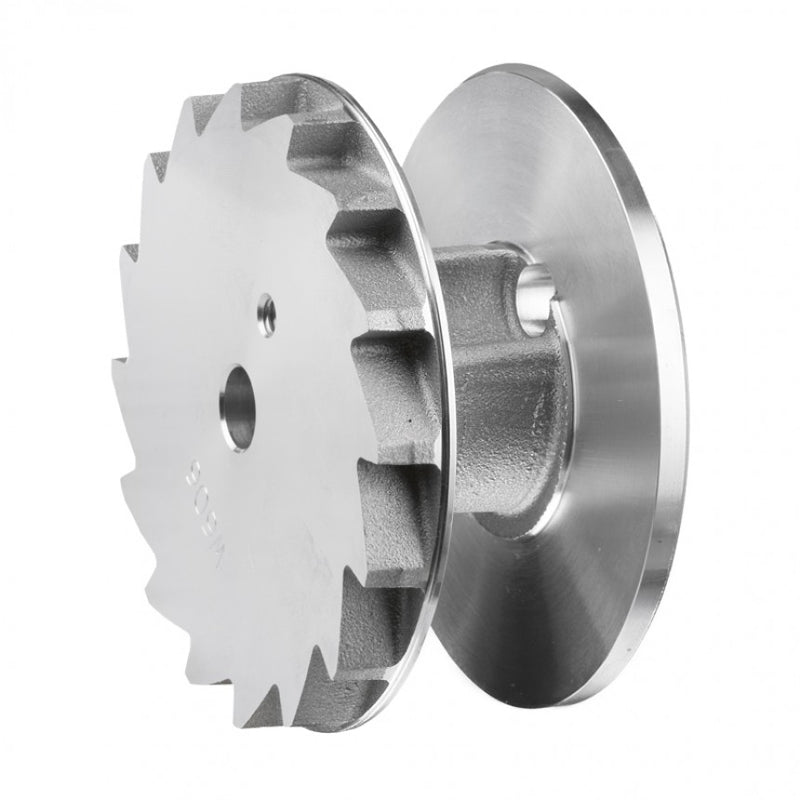

SKU: 748 | Drum ” Compatible with Lug-All Models 500-A, 500-i, 500-A-FH, 1000-A, and 1500-A (Lightweight Web Strap Hoists) Protect Your Strap and Restore Smooth Operation ” OEM Replacement Drum for the Lug-All Lightweight Series In Lug-All's compact Lightweight series, every component is engineered to deliver maximum performance in a minimal footprint ” and the drum is no exception. The SKU 748 Drum is a genuine OEM replacement component compatible with five models across the Lug-All Lightweight line: the model 500-A, a 1/4-ton web strap winch hoist with 16 feet of strap and 500-pound capacity; the model 500-i, a 1/4-ton web strap winch hoist with 16 feet of strap, 500-pound capacity, and eyebolts to avoid hook-to-hook connections; the model 500-A-FH, a 1/4-ton web strap winch hoist with 17 feet of strap and 500-pound capacity; the model 1000-A, a 1/2-ton web strap winch hoist with 10 feet of strap and 1,000-pound capacity; and the model 1500-A, a 3/4-ton web strap winch hoist with 8 feet of strap and 1,500-pound single line capacity. If your drum is cracked, worn, or damaged, this single OEM part covers all five compatible models ” making it an essential spare for anyone operating multiple units in the Lightweight series. Lug-All + 4 The drum is the strap winding core of your hoist ” but in Lug-All's design, it does far more than simply store the strap between uses. All Lug-All web strap hoists are designed with a double flanged drum to protect the strap. These raised flanges on both sides of the drum barrel contain the strap as it winds, preventing it from riding off the drum edge and making contact with the ratchet teeth ” a failure mode that can cause rapid strap abrasion, cutting, and sudden loss of load. In the compact Lightweight series, where component clearances are tighter than in full-sized models, maintaining correct drum geometry through OEM replacement parts is especially critical for consistent strap protection. Lug-All The Lug-All Lightweight line consists of industrial-grade hoists that are more compact than other models, meaning their internal components ” including the drum ” are specifically dimensioned for smaller frame clearances and lighter strap widths. Substituting a drum from a different Lug-All series or a non-OEM equivalent risks incorrect flange geometry, improper strap fit, and failure of the strap protection function the double flanged design was engineered to provide. Lug-All Lug-All Web Strap Hoists are designed for overhead maintenance and construction of energized lines and are used internationally by utilities and utility service companies ” and the Lightweight series models are particularly valued for field portability. The 500-A is small enough to fit in the seat compartment of an off-road vehicle such as a snowmobile or 4x4, making it ideal for remote recovery and utility work where quick strap winding performance is essential. A compromised drum degrades that performance immediately. Lug-AllLug-All Using authentic Lug-All replacement parts means sustaining the original design integrity of your unit ” the cast-aluminum structure, robust pawl assemblies, and reliable hardware that make Lug-All hoists a trusted choice in demanding industrial, construction, and utility settings. Lug-All

Product Specifications SpecificationDetailSKU748Part NameDrumCompatible ModelsLug-All 500-A, 500-i, 500-A-FH, 1000-A, and 1500-AHoist LineLug-All Lightweight SeriesModel 500-A Capacity500 lbs / 16 FT (single line)Model 500-i Capacity500 lbs / 16 FT (single line)Model 500-A-FH Capacity500 lbs / 17 FT (single line)Model 1000-A Capacity1,000 lbs / 10 FT (single line)Model 1500-A Capacity1,500 lbs / 8 FT (single line)Drum DesignDouble Flanged for Web Strap ProtectionPart TypeOEM Replacement ComponentCountry of ManufactureUSA

One Part Number ” Five Compatible Models The SKU 748 drum's cross-compatibility across five Lightweight series models makes it an efficient stocking choice for maintenance teams operating multiple hoists from this line. Rather than managing separate part numbers for each model, a single SKU 748 drum covers your entire Lightweight fleet. Regular maintenance and inspection of hoist parts are essential for ensuring safe and efficient operation, and addressing wear or malfunctions promptly contributes to the longevity and reliability of the hoist system. Keep one on the shelf and your Lightweight series hoists will never be sidelined by drum damage. BH-USA This drum is compatible with Lug-All models 500-A, 500-i, 500-A-FH, 1000-A, and 1500-A only. Please verify your hoist model number before ordering.
