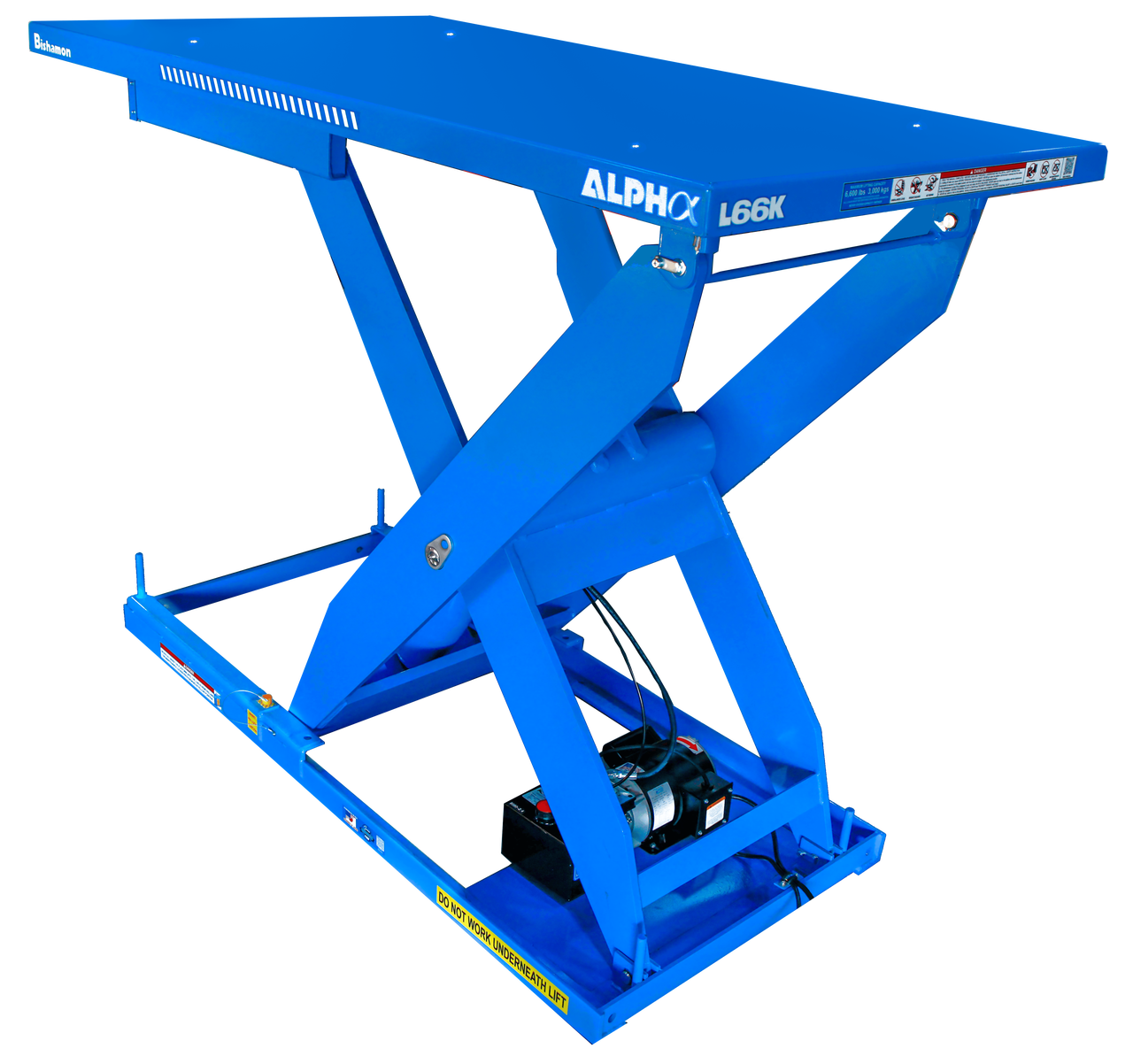

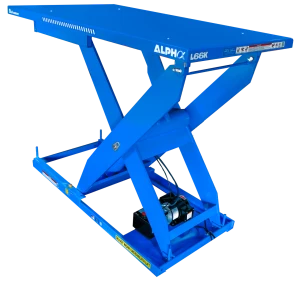

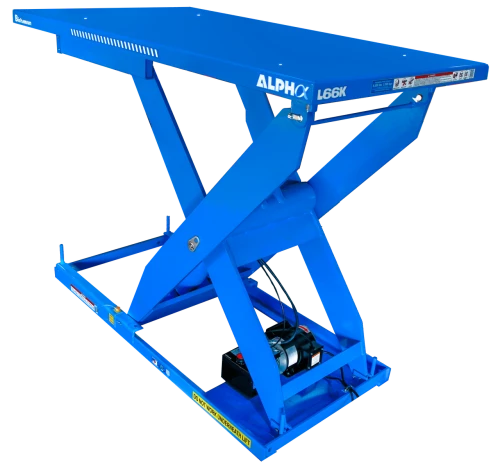

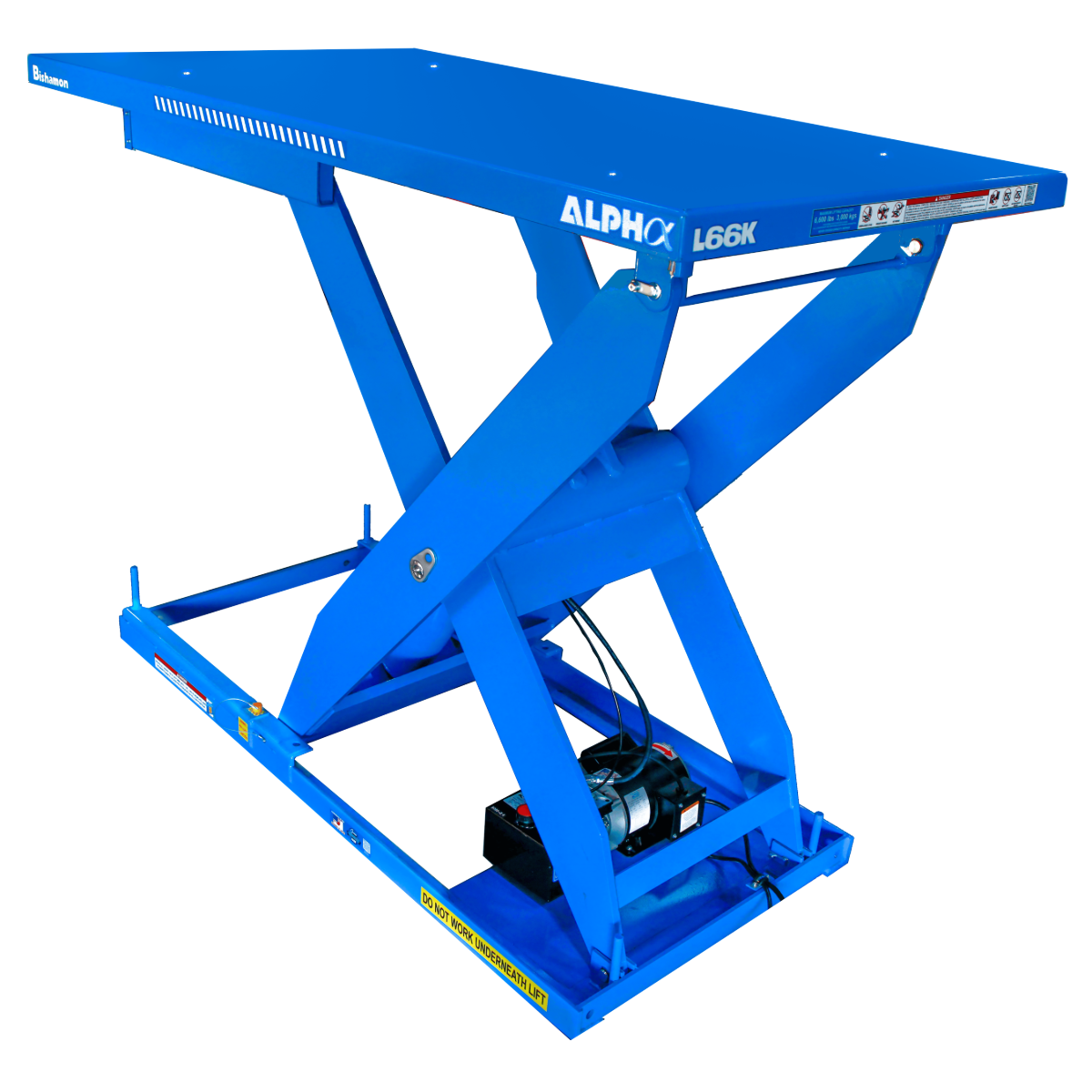

ALPHA Electric-Hydraulic Lift Tables - L66K-4078

The L66K-4078 Alpha Electric-Hydraulic Lift Table is a high-capacity, industrial-strength lifting solution designed to improve productivity, enhance safety, and optimize ergonomic performance in demanding material handling environments. As part of the advanced Alpha Series, this lift table is engineered to reduce manual lifting, minimize operator fatigue, and increase operational efficiency, making it a valuable addition to any modern facility.

With a powerful 6,600 lb lifting capacity, the L66K-4078 is ideal for handling heavy loads in warehouses, manufacturing plants, assembly lines, and maintenance operations. By elevating materials to comfortable working heights, it eliminates unnecessary bending, reaching, and lifting —helping to reduce workplace injuries and improve operator comfort and efficiency.

The electric-hydraulic scissor lift system delivers smooth, controlled lifting and lowering, ensuring precise load positioning and stable performance. Integrated flow-limiting valves provide an added layer of safety by preventing sudden drops and ensuring controlled descent during operation. This makes the lift table ideal for handling sensitive or high-value materials where stability and safety are critical.

Constructed with a reinforced steel frame and heavy-duty scissor arms, the L66K-4078 is built for durability and long-term reliability in high-cycle industrial environments. Premium high-load ball bearings and continuous axle rollers ensure smooth, consistent movement while supporting up to 35,000 cycles per year, making it suitable for demanding production schedules.

The lift table features a compact, integrated hydraulic power unit and reservoir, maximizing performance while minimizing space requirements. Its plug-and-play control system is intuitive and user-friendly, allowing operators to quickly and efficiently integrate the unit into existing workflows.

Maintenance is simplified with self-lubricating, maintenance-free bushings, reducing wear and eliminating routine lubrication. The L66K-4078 is fully compliant with ANSI MH29.1:2020 safety standards, and all electrical components are UL and CSA certified, ensuring top-tier safety and reliability.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-4078 Alpha Lift Table delivers dependable, long-term performance for heavy-duty applications.

Specifications

• Model / SKU: L66K-4078
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Lift Mechanism: Electric-hydraulic scissor lift system
• Operation: Smooth, controlled lifting and lowering
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent and reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly lines, maintenance operations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-4078 Lift Table is the ideal solution for businesses seeking maximum lifting capacity, superior safety features, and long-lasting performance in high-demand material handling operations.
