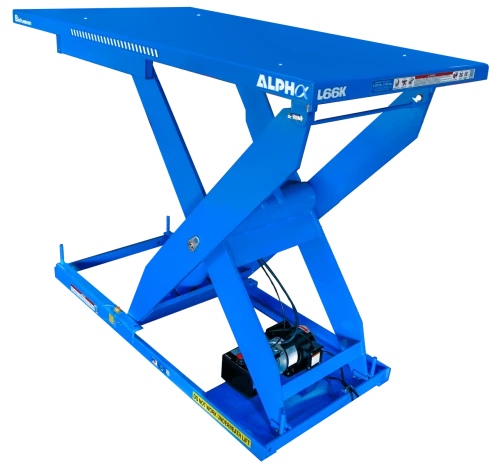

ALPHA Electric-Hydraulic Lift Tables - L66K-4059-480

The L66K-4059-480 Alpha Electric-Hydraulic Lift Table is a premium heavy-duty lifting solution engineered to deliver exceptional performance, durability, and safety in the most demanding industrial environments. As part of the advanced Alpha Series, this lift table is designed to improve ergonomics, reduce manual handling, and increase operational efficiency, making it a critical asset for modern material handling applications.

With a powerful 6,600 lb lifting capacity, the L66K-4059-480 is built for high-load applications in manufacturing facilities, warehouses, assembly lines, and maintenance operations. It allows operators to position heavy materials at optimal working heights, eliminating unnecessary lifting, bending, and reaching —helping reduce fatigue and minimize workplace injuries.

Powered by a 480V industrial electric-hydraulic system, this lift table is ideal for continuous, high-cycle operation. It provides smooth, controlled lifting and lowering, ensuring precise load positioning and stable performance under heavy loads. The reinforced scissor lift mechanism minimizes vibration and load shift, while integrated flow-limiting valves prevent sudden drops and ensure safe, controlled descent.

Engineered for long-term reliability, the L66K-4059-480 features a heavy-duty steel frame and reinforced scissor arms designed to withstand rigorous industrial use. Premium high-load ball bearings and continuous axle rollers ensure smooth operation and support up to 35,000 cycles per year, making it suitable for demanding production environments.

The lift table includes a compact, integrated hydraulic power unit and reservoir, optimizing performance while minimizing space requirements. Its plug-and-play control system is intuitive and easy to operate, allowing for seamless integration into existing workflows and improved operator productivity.

Maintenance is simplified with self-lubricating, maintenance-free bushings, reducing wear and eliminating routine lubrication. The unit meets ANSI MH29.1:2020 safety standards, and all electrical components are UL and CSA certified, ensuring the highest levels of safety and compliance.

Backed by an industry-leading 5-year parts and 2-year labor warranty (U.S. & Canada), the L66K-4059-480 Alpha Lift Table offers long-lasting reliability and peace of mind for heavy-duty applications.

Specifications

• Model / SKU: L66K-4059-480
• Series: Alpha Electric-Hydraulic Lift Tables
• Lifting Capacity: 6,600 lbs
• Power Supply: 480V industrial electric power
• Lift Mechanism: Electric-hydraulic scissor lift system
• Operation: Smooth, controlled lifting and lowering
• Bearings: Premium high-load ball bearings for enhanced durability
• Rollers: Continuous axle rollers for consistent and reliable movement
• Safety Features: Flow-limiting valve; maintenance safety pin
• Power Unit: Compact, integrated hydraulic power unit and reservoir
• Controls: User-friendly plug-and-play control system
• Construction: Heavy-duty steel frame with reinforced scissor structure
• Bushings: Self-lubricating, maintenance-free pivot bushings
• Cycle Rating: Up to 35,000 cycles per year
• Compliance: ANSI MH29.1:2020; UL/CSA certified electrical components
• Applications: Manufacturing, warehousing, assembly lines, maintenance operations
• Warranty: 5-year parts / 2-year labor (U.S. & Canada)

The Alpha L66K-4059-480 Lift Table is the ideal solution for businesses seeking maximum lifting capacity, industrial-grade durability, and advanced safety features in high-performance material handling equipment.
