EKKO EK50LP Forklift (LPG) 10,000 lb Capacity, 185" Lift Height

Write a Review
$62,999.00
$56,248.75
(You save $6,750.25 )
SKU: EK50LP
Weight: 16,250.00 LBS
Width: 56.00 (in)
Height: 92.00 (in)
Depth: 157.00 (in)
Shipping: Calculated at Checkout
Drive type: LPG
Type of operation: Propane
Load Capacity: 10,000 - 19,999 lbs
Lift height: 185 in
Wheelbase: 61.8 in
Service Weight: 16,250
Tire material: Pattern Cush. Tire
Traction Pin Height: 11.2 in
Service Brake: Hydraulic Foot Pedal
Overall Width: 55.9 in
Overall length with forks: 157
Overall length without forks: 109 in
Min ground clearance (at the mast): 4.3 in
Power Type: LPG / Propane
Max Lift Height: 185 in
Tire Type: Cushion
Adding to cart… The item has been added
EKKO EK50LP Forklift (LPG) 10,000 lb Capacity, 185" Lift Height

EKKO EK50LP Forklift (LPG) 10,000 lb Capacity, 185" Lift Height

$62,999.00
$56,248.75
(You save $6,750.25 )

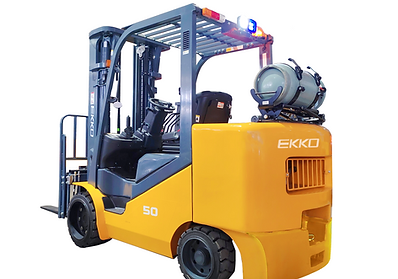

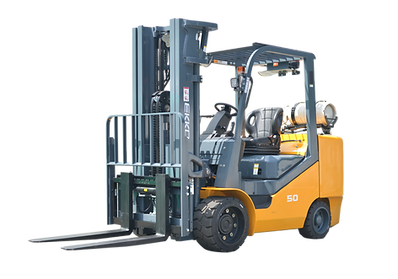

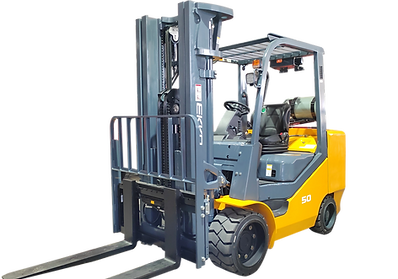

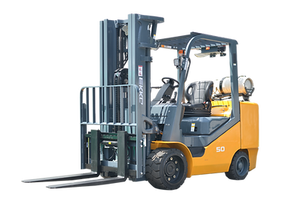

The EK50LP Liquid Propane 4-Wheel Forklift (SKU: EK50LP) is a heavy-duty material handling solution engineered for demanding warehouse, distribution, and industrial applications. Designed for high-capacity lifting and long-term durability, this forklift delivers reliable performance while maintaining operational efficiency. Powered by a Tier 4 EPA-compliant Kubota engine, the EK50LP provides clean, efficient operation that meets modern environmental standards without sacrificing power.

Built with a robust heavy-duty chassis, the EK50LP enhances structural durability and operator protection in high-intensity material handling environments. The multifunction instrument panel allows operators to monitor critical system data in real time, improving safety and operational awareness. This feature supports efficient performance by providing instant feedback on operational metrics, reducing downtime and enhancing productivity.

Operator comfort and ergonomics are prioritized in the design of the EK50LP. The operator compartment features a nonslip entrance step, wider access, and increased legroom to facilitate easy entry and exit while reducing fatigue during extended shifts. The adjustable steering column further minimizes strain on the operator’s arms and shoulders, promoting a more comfortable and productive working experience. Excellent visibility from the operator’s position enhances situational awareness, enabling precise maneuvering and safer operation in busy industrial settings.

For improved maneuverability in tight spaces, the steer axle pivots up to 80 degrees, delivering a tighter turning radius that enhances navigation through narrow aisles and confined work areas. Hydraulic controls provide smooth and responsive handling, allowing operators to lift, position, and transport materials with precision. Whether handling pallets, bulk materials, or heavy equipment, the EK50LP is built to meet diverse material handling demands with efficiency and reliability.

Specifications – EK50LP Liquid Propane Forklift

  • SKU: EK50LP

  • Power Source: Liquid Propane (LP)

  • Engine: Kubota Tier 4 EPA-compliant engine

  • Capacity: Heavy-duty material handling capability

  • Chassis: Integral heavy-duty construction for enhanced durability

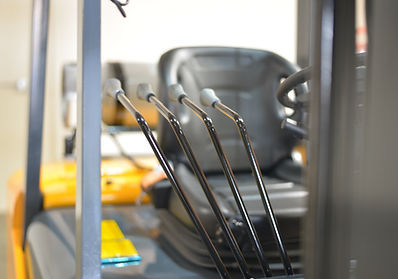

  • Operator Controls: Hydraulic controls for smooth and precise handling

  • Instrument Panel: Multifunction display for real-time operational monitoring

  • Operator Compartment: Nonslip step, wider access, and increased legroom

  • Steering Column: Adjustable design to reduce operator fatigue

  • Visibility: Optimized operator sightlines for improved safety

  • Steer Axle: Pivots up to 80 degrees for enhanced maneuverability

  • Turning Radius: Tight-turn capability for confined spaces

  • Applications: Warehousing, distribution, manufacturing, and logistics

  • Compliance: Tier 4 EPA emissions standards

  • Safety Features: Heavy-duty chassis and ergonomic operator design

  • Durability: Engineered for long-term industrial performance

EKKO Material Handling Equipment provides two separate limited warranties covering different equipment categories, both warranting products free from defects in workmanship and materials for the original purchaser, with final determination of compliance reserved by EKKO. Under the EKKO Advantage Warranty (electric equipment), coverage varies by class and part: wearable items such as tires, bulbs, and rubber parts carry a 30-day warranty across all classes; Class I and II motorized/rider equipment require labor fees within six months to be pre-approved on specified models or they go uncovered; a one-year warranty covers parts such as forks, platforms, handles, transmission components, weldments, motors, controllers, and chargers across Classes I, II, and III (with specific model lists for manual, semi-electric, and full-electric equipment); frame, forks, and mast carry a three-year warranty across all classes; batteries are covered for one year (lithium and flooded/lead-acid, with exclusions for improper use, degradation, or normal wear) on most models, with select lithium-battery models extended to five years; and scissor lifts follow the same 30-day wearable-parts and one-year full-electric-component structure. Under the EKKO LPG/Diesel Warranty, coverage begins at dealer purchase and is non-transferable, with frame, forks, and mast fully covered for three years or 6,000 hours, the engine for two years or 4,000 hours, and general unit parts for one year or 2,000 hours (whichever comes first in each case); batteries and wearable items like tires, bulbs, and lights carry a 30-day warranty excluding normal wear or abuse; labor fees must be pre-approved and can be requested within six months or 1,000 operating hours, with EKKO covering up to 60% of labor cost and 1.5 hours of allowed travel time, while transportation costs are otherwise excluded; parts requiring inspection must be returned within 30 days or the dealer will be charged; and claims are settled via credit invoice rather than a check. Across both warranties, claims must be submitted with a completed claim form, a photo of the data plate, defect-demonstrating pictures/video, and a detailed failure explanation to Support@ekkolifts.com, with incomplete submissions resulting in denial and processing not beginning until documentation is complete; dealers bear all inbound/outbound shipping costs, cannot amend a parts purchase order to reflect warranty status after the fact, must obtain a Return Authorization Number before returning equipment, must leave items like electrical controls and drive wheel assemblies unopened without prior approval, and must notify EKKO within 30 days of receiving incorrect or defective parts; end-users must go through their authorized dealer first, escalating to EKKO directly if dissatisfied, and retain state-specific legal rights beyond this warranty. Both warranties exclude coverage for normal wear and tear, abuse (neglect, misuse, overloading, unauthorized alterations), lack of maintenance, freight damage (which must be documented on the Proof of Delivery and reported to the freight company, not claimed as warranty), customer preference adjustments like software updates, and units with a defaced or missing serial number; both state that this limited warranty is EKKO's exclusive warranty, disclaim all other express or implied warranties including merchantability or fitness for a particular purpose, exclude liability for special, exemplary, punitive, incidental, or consequential damages regardless of claim origin, and limit EKKO's sole liability to repairing or replacing defective parts under normal and proper use within the warranty period upon a properly submitted and approved claim.
